Tubos de refrigeración
Refrimaster tuberías
Descripción G6
Dimensiones (mm) 8 a 12,7
Tamaño del tubo de 5 / 16 "
Tubo Ref. G6
Peso (kg aproximadamente) 0.090 kg / m
Por metro
Descripción del Artículo:

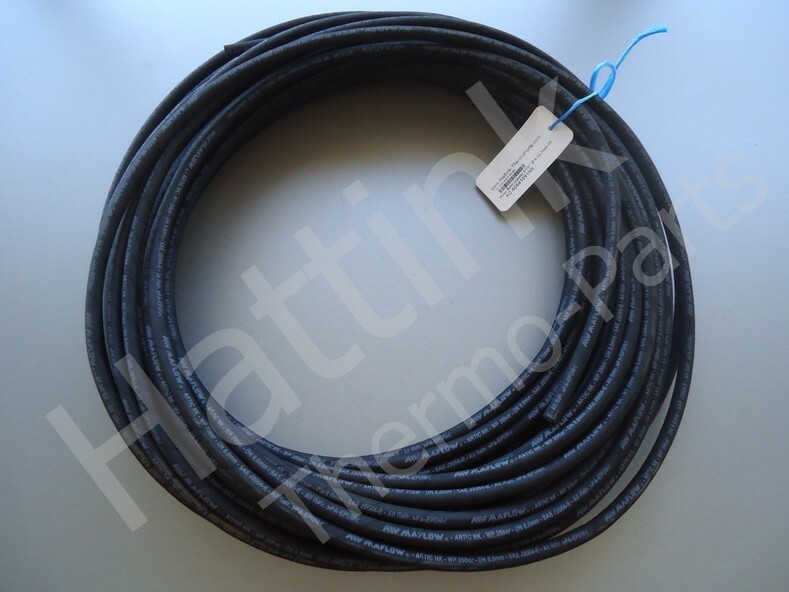

Artic NK AW Maflow
WP 20 Bar-DN16,0mm
SAEJ2064-E All Ref. >PA-EPDM<
Specification
(qualifications list is not
excluding further specs.)
AudiNW TL82316 & VW 50170; BMW QV64005; Daimler DBL6228 & A2118300600;
(qualifications lislis not excluding Delphi Thermal SD2-254; Fiat 9.93460-01; Ford
S95UW-19B591-AA; GM 13003; furtherspecs.) Nissan 92480 NDS1 0; PSA 827-
3010; Renault 32-02-017; SAE J2064; VTC TR 20817215; vcc 31803943/44
Working Temp. - 40 ÷ 125°C
Peak Temp. 140°C

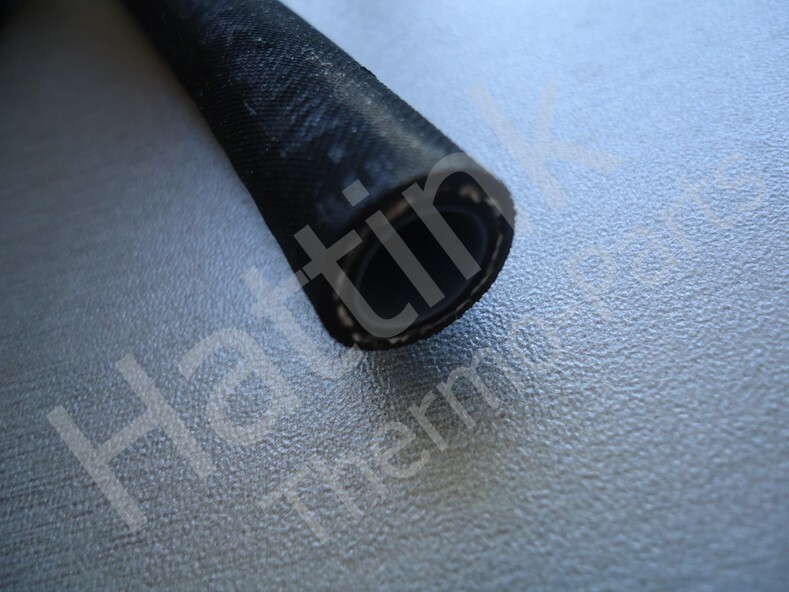

Tube PA
Reinforcement 1 textile draid
Cover EPDM
Key characteristics - Low Permeability to Refrigerant Fluids;;
- Compatibility with a wide range of refrigerants such as R134a, R1234yf, R404a;
- Compact Dimensions; Low Weight;
- High Flexibility;

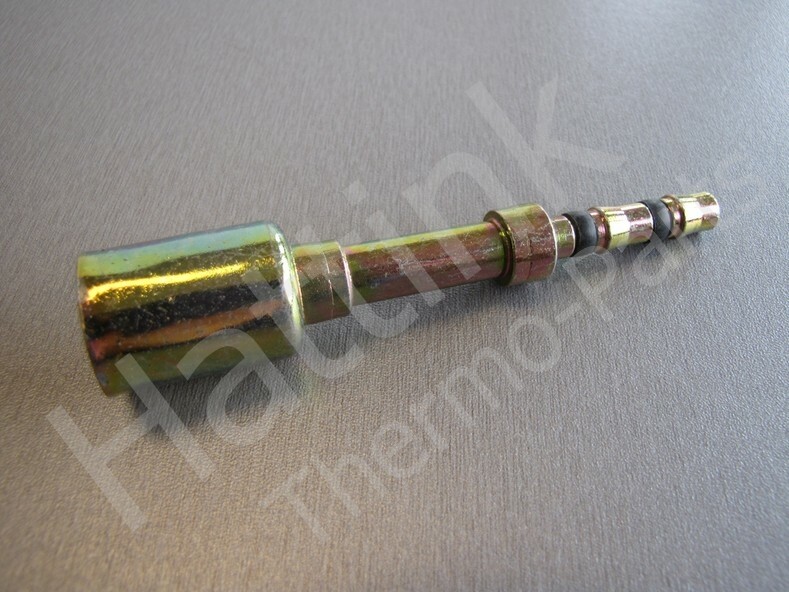

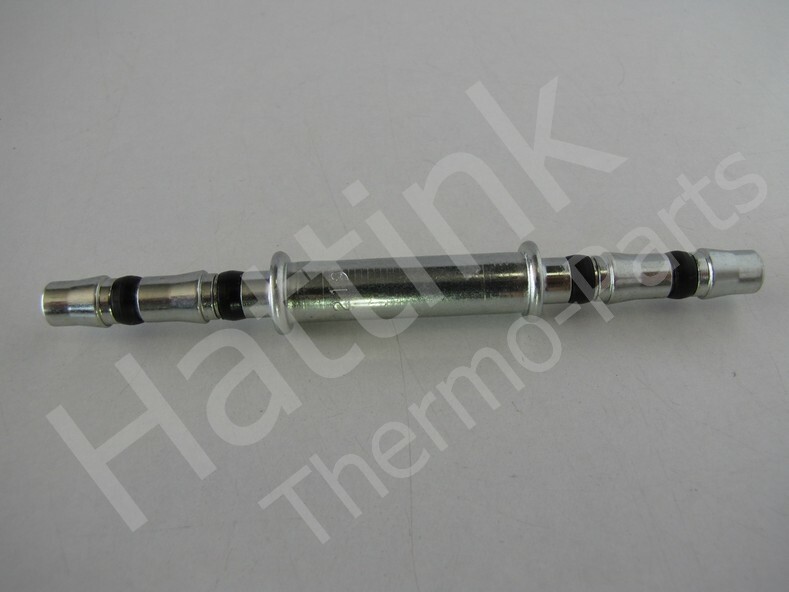

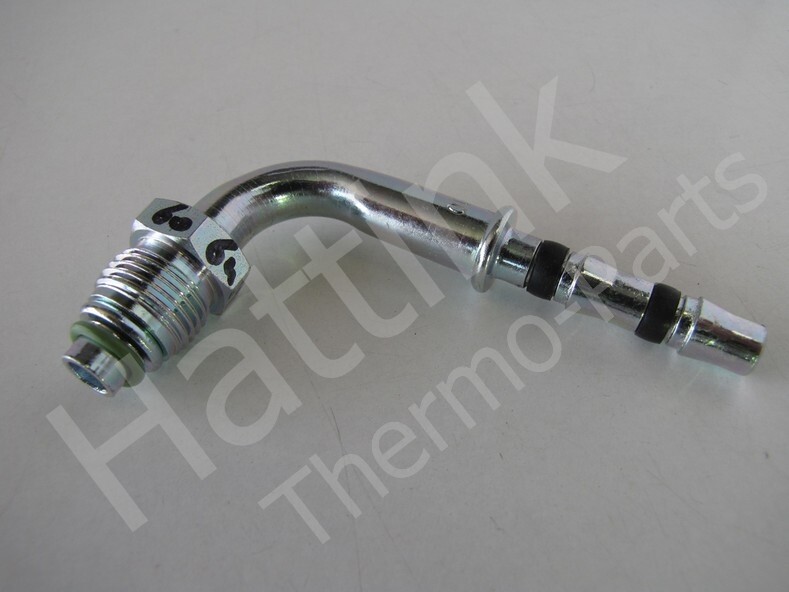

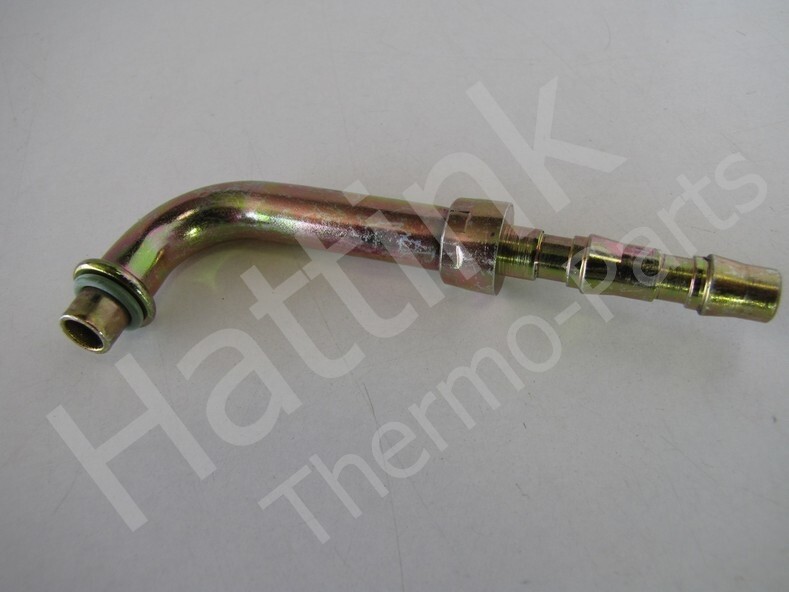

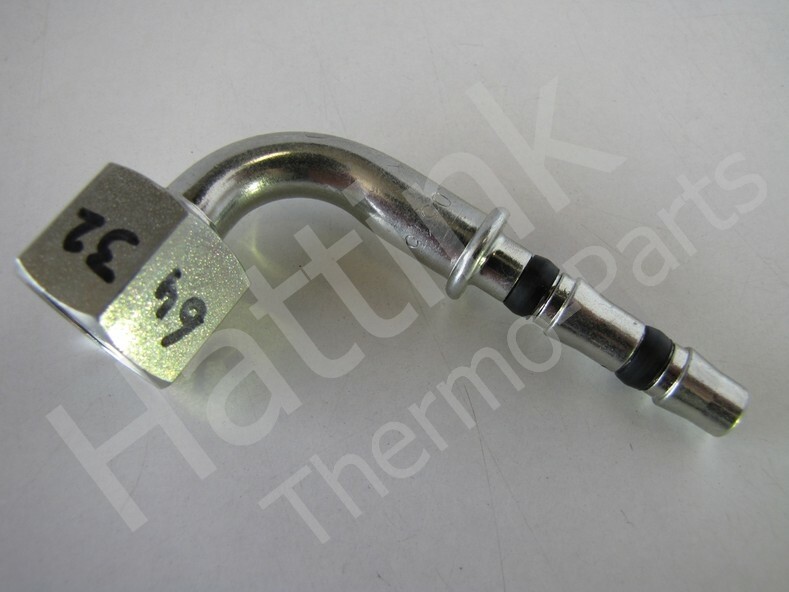

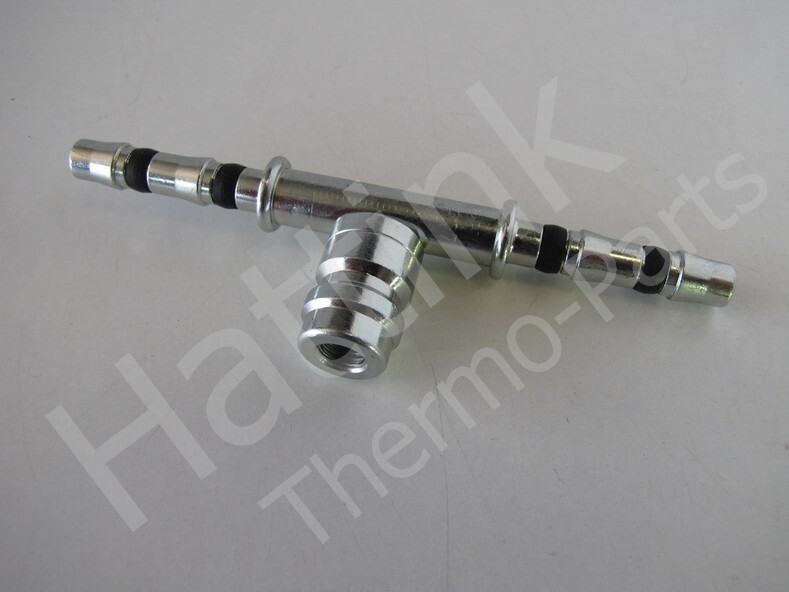

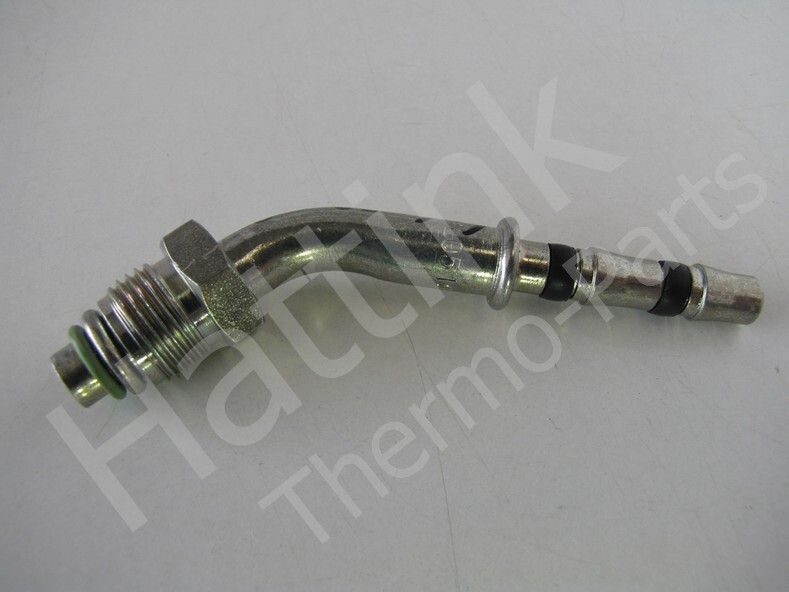

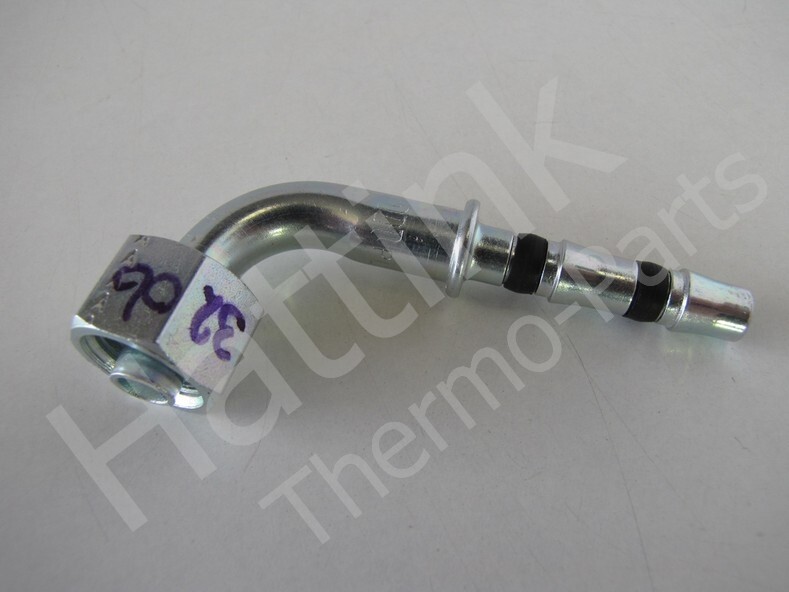

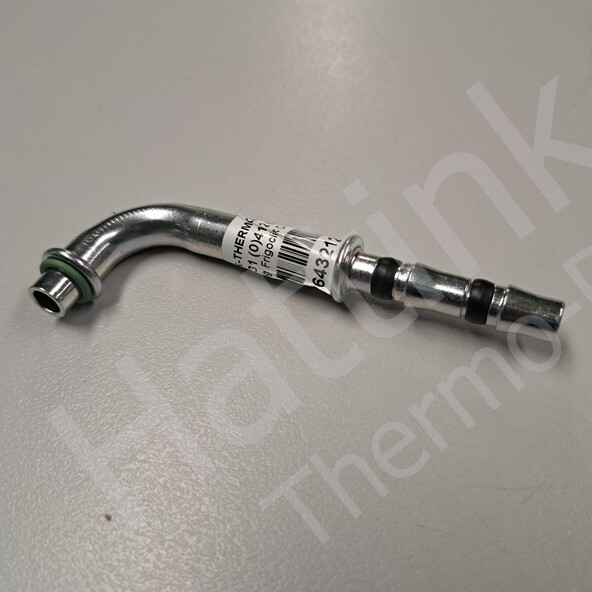

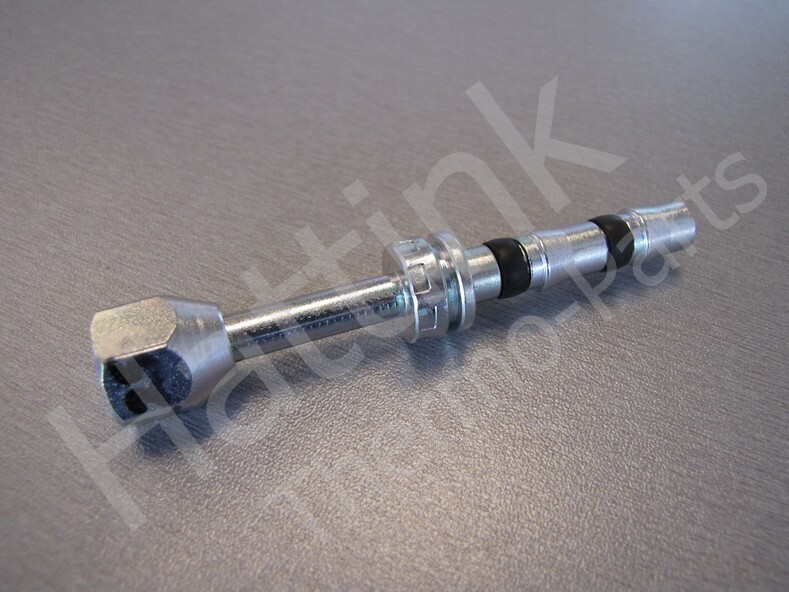

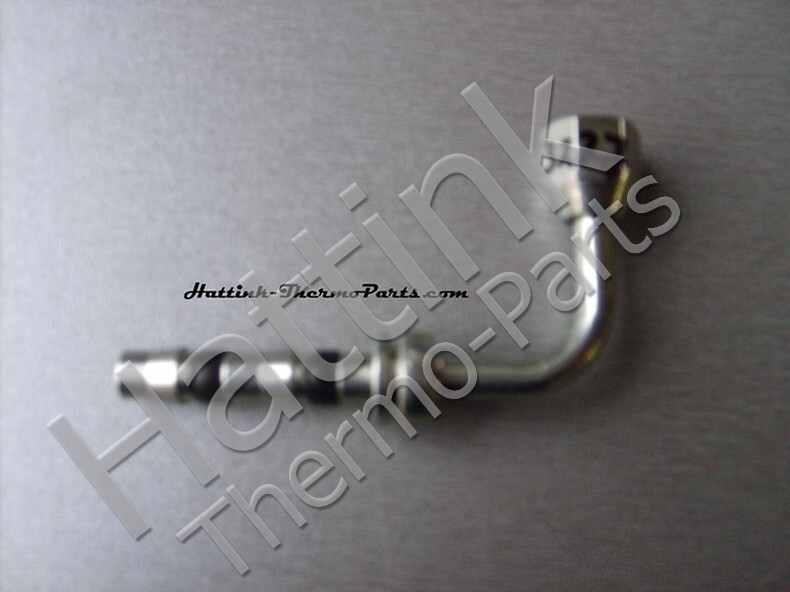

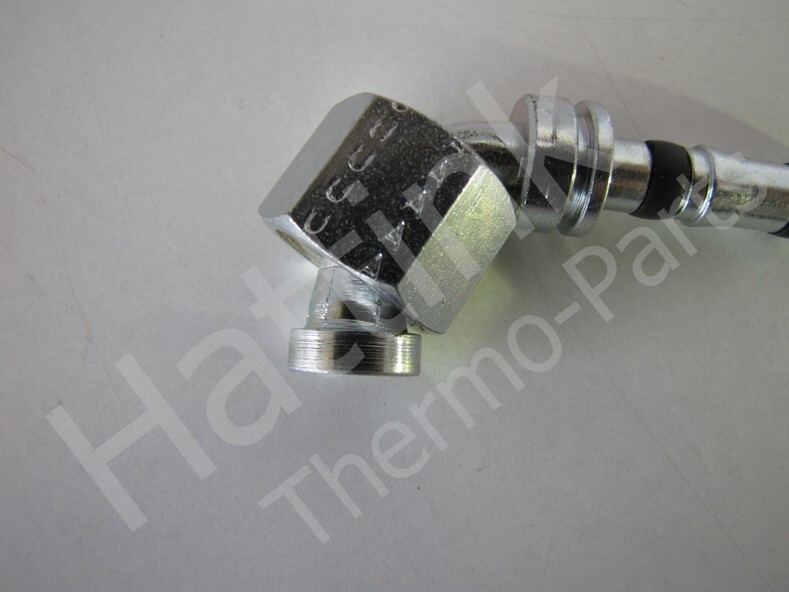

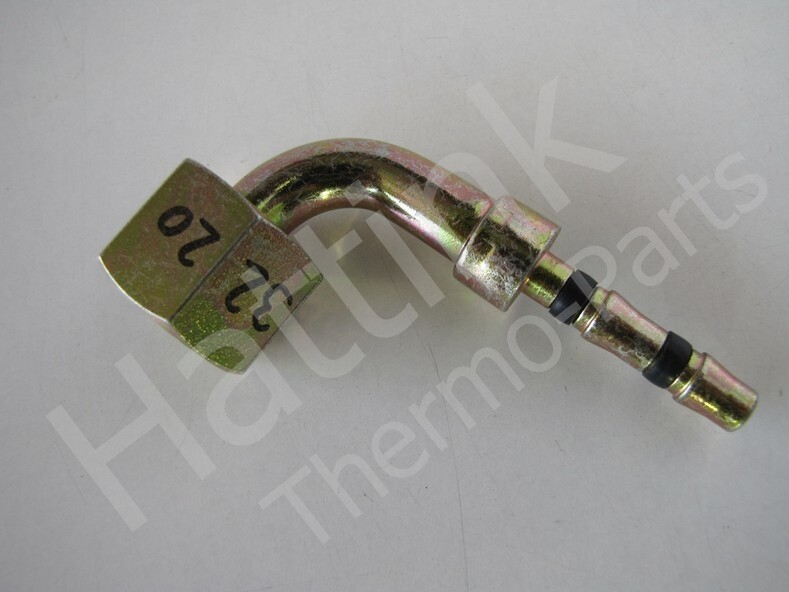

- Low Noise Transmission DN8x12.7, 10.5x16, 12,7x18.1, 16x21,7 are couplable
with reusable FRIGOCLIC® fitting also.
DIMENSIONS AND TOLERANCES
DN: 8,0 x 12,7 [mm]
ID 0D: 5/16 Size [inch]
Hose ID: 7,8 8,2 [mm]
min max Hose OD: 12,5 13,1 [mm]
min max Max wall th. difference: 0,4[mm]
TECHNICAL CHARACTERISTICS
DN: 8,0 x 12,7 (mm)
ID 0D Working pressure: 35 [bar]
Burst pressure >250 bar]
Minimum bend radius: 40 [mm]
Weight : 90 [g/m]
Permeability to R134a@ 80°C < 0,5 [kg/m²/y]

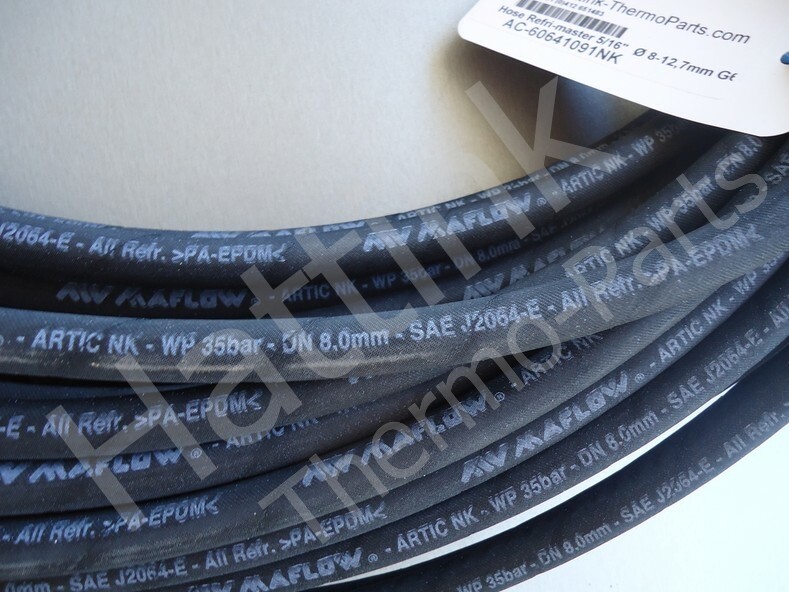

Marking Maflow : ARTIC NK - WP 35bar - DN ... mm - SAE J2064/E - Ali Refr. >PA-EPDM<
